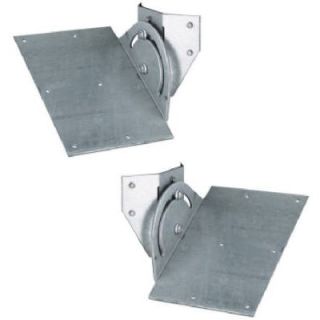

Metalbest RSK Universal Class A Roof Support Bracket

Universal Class A Roof Support Bracket

An ideal support assembly for freestanding fireplaces and open cathedral ceiling installations. Fits all roof pitches and requires only simple framing. Mounts easily onto top of roof through opening that allows 2" clearance. Maximum length of chimney which can be suspended below is 20´. Maximum total length is 30´. This kit contains the roof brackets and hardware, but does not come with the pipe section (for pipe section order an RSP). The brackets may be assembled to any standard pipe length at any desired height. Locking bands must be used at each pipe joint.

Features:

• Materials: Stainless steel
• Clearance: 2" to combustibles
• Allowable Flue Gas Temperatures:
  • Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
  • Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
• UL Listed: UL-103
• Warranty: Lifetime Limited Warranty
